Multiple Applications

SEM660D can be widely used in port cargo handling mineral yards, steel mill,and other high productivity demand applications
In aggregate site, coal loading and construction etc loosen material handling utilization applications,SEM660D can load more, move faster and burn less
Multiple work tools for selection

Model

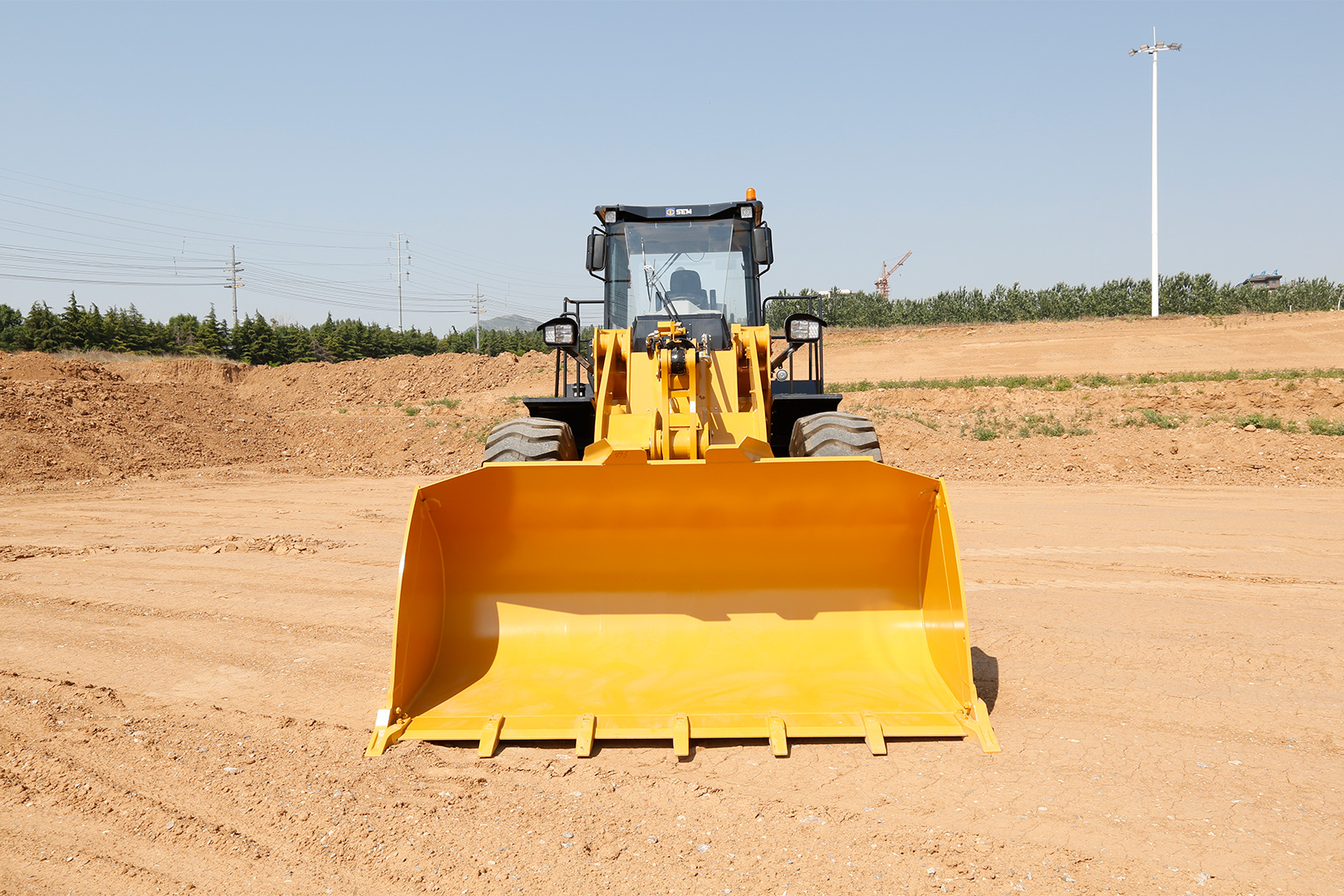

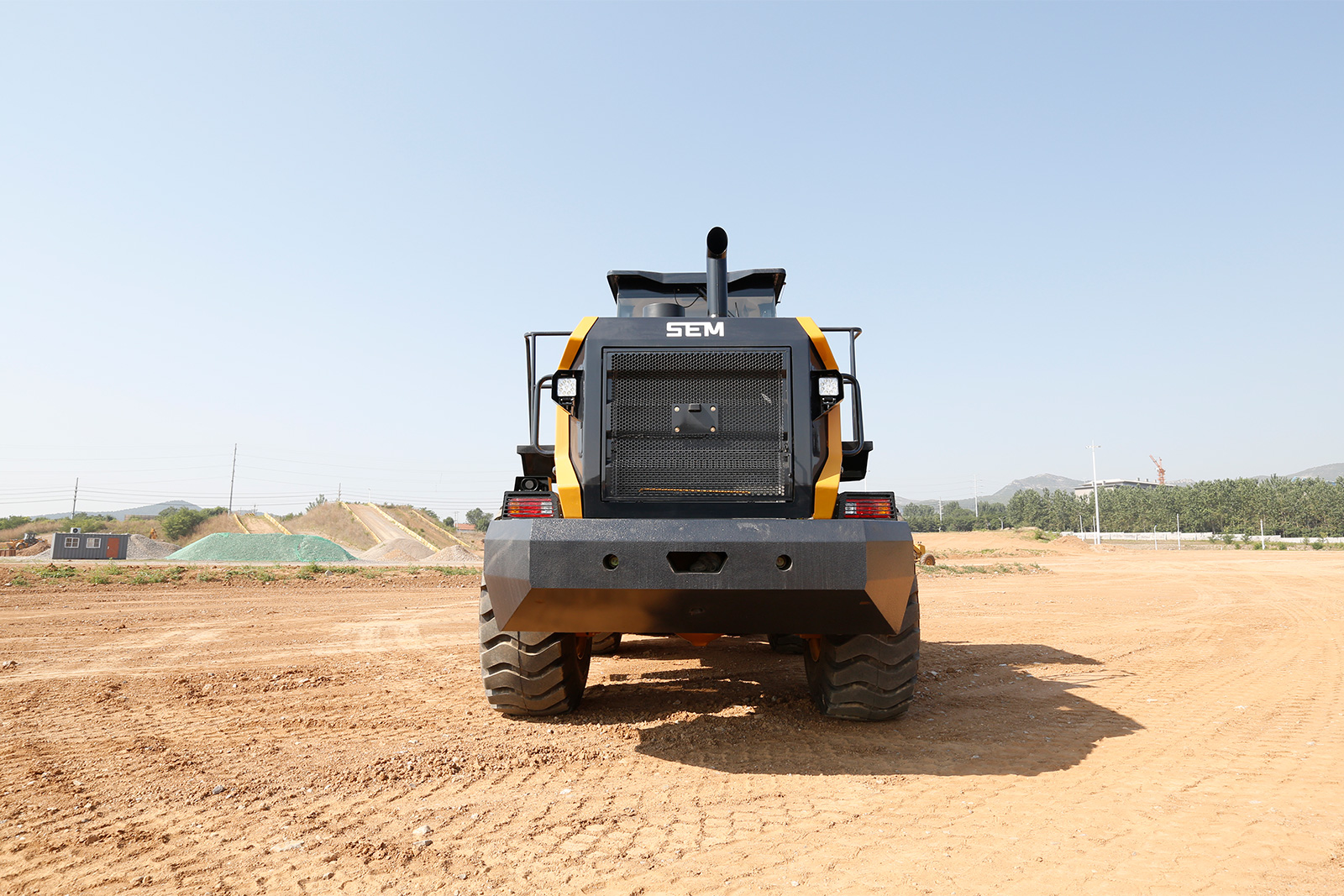

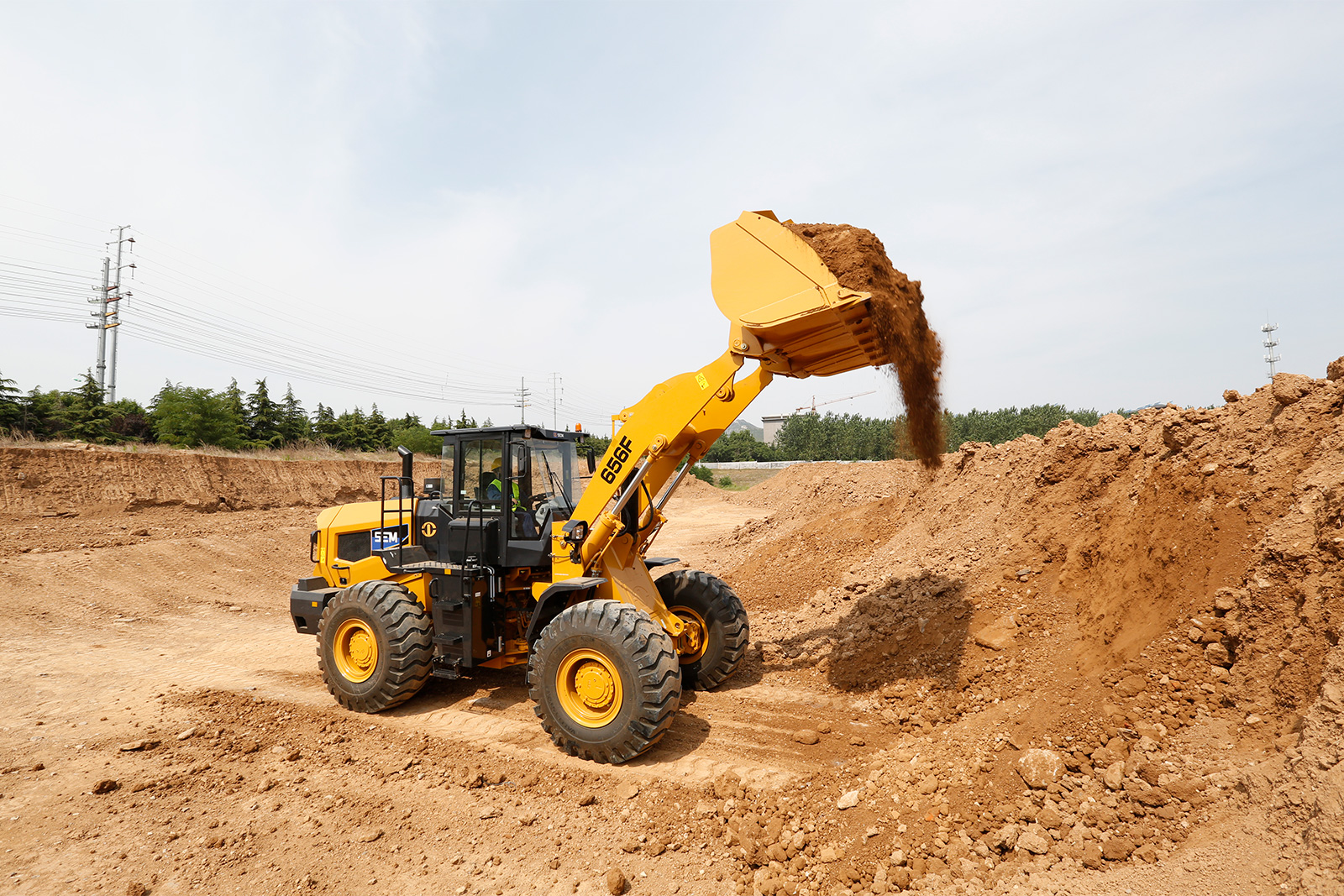

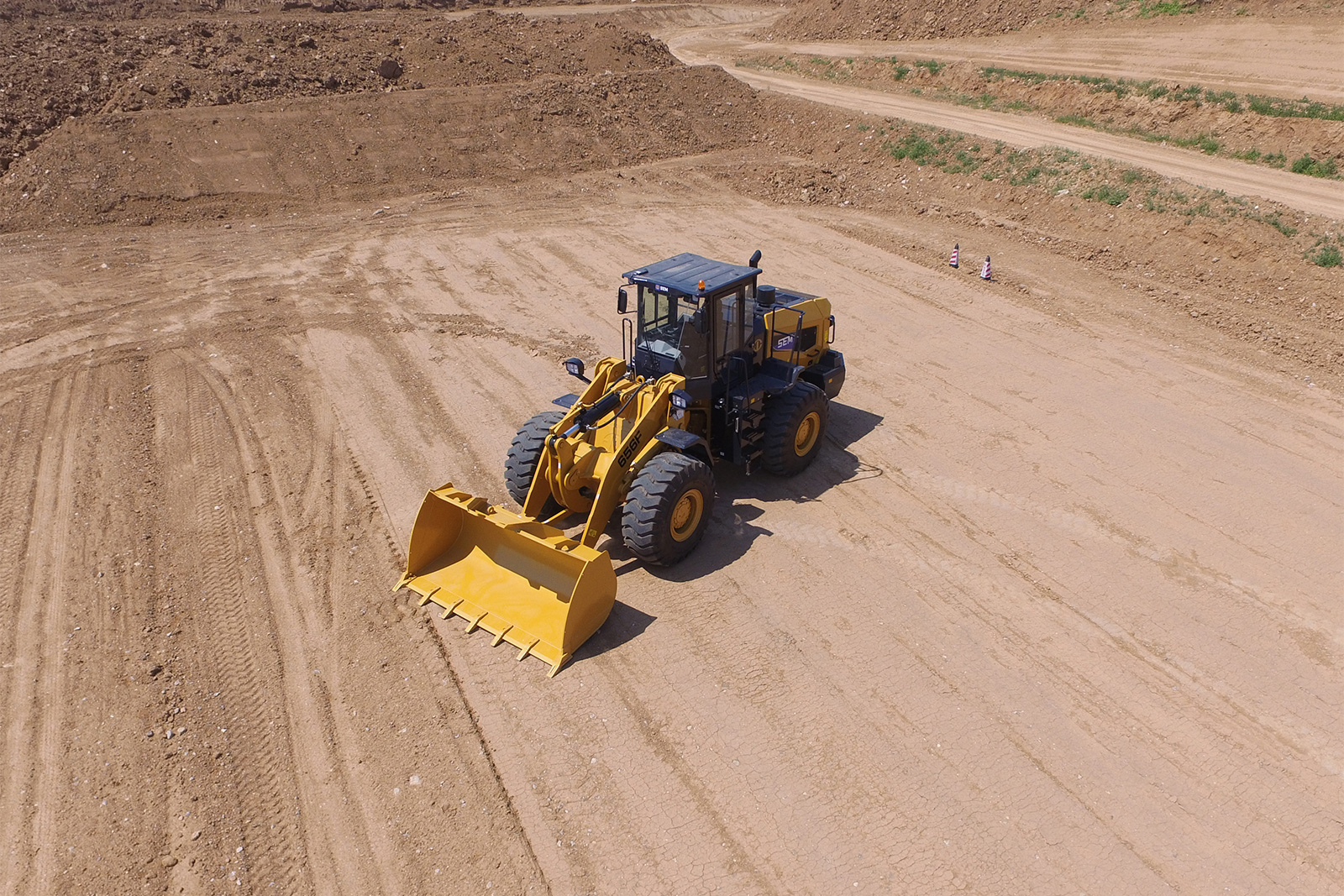

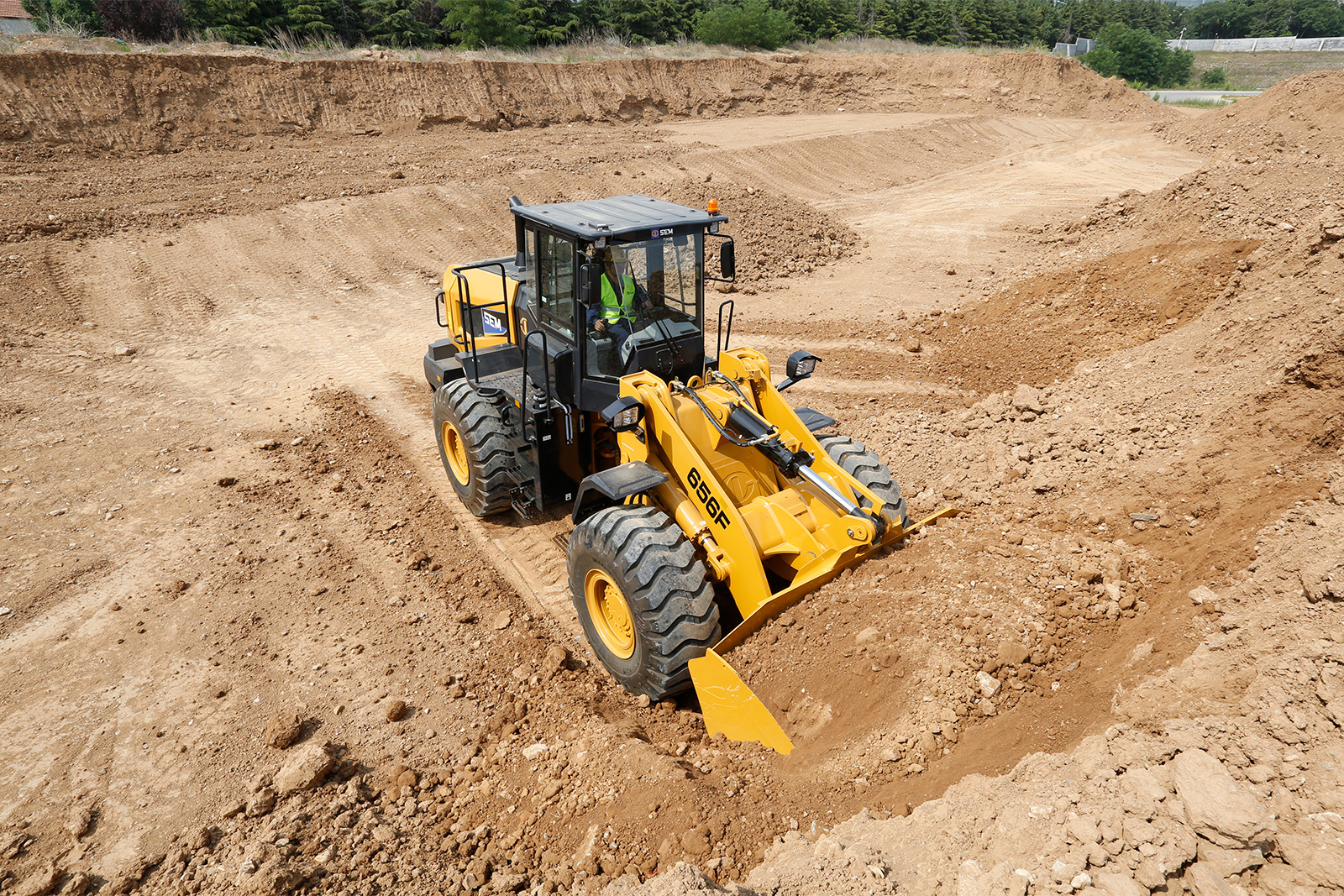

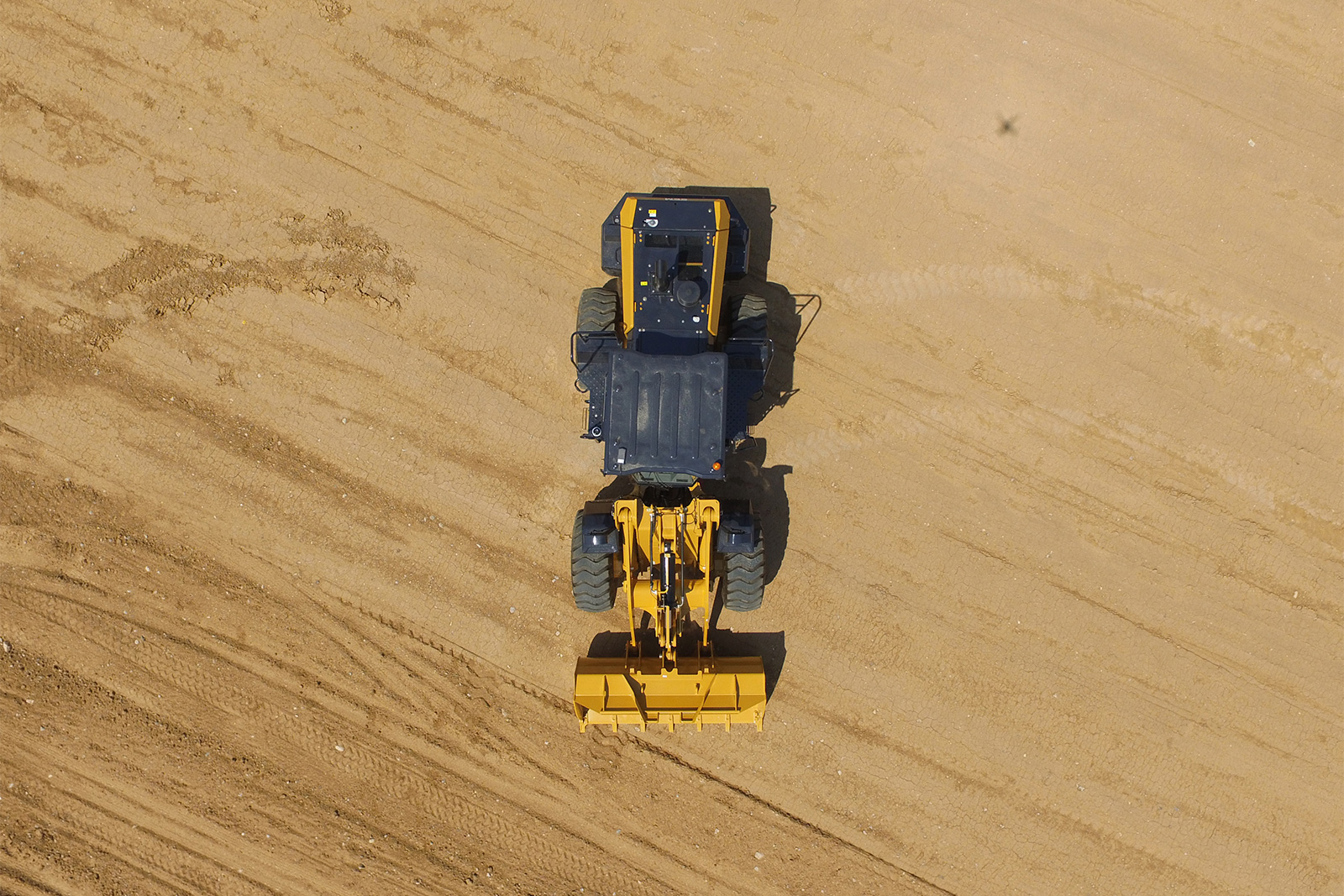

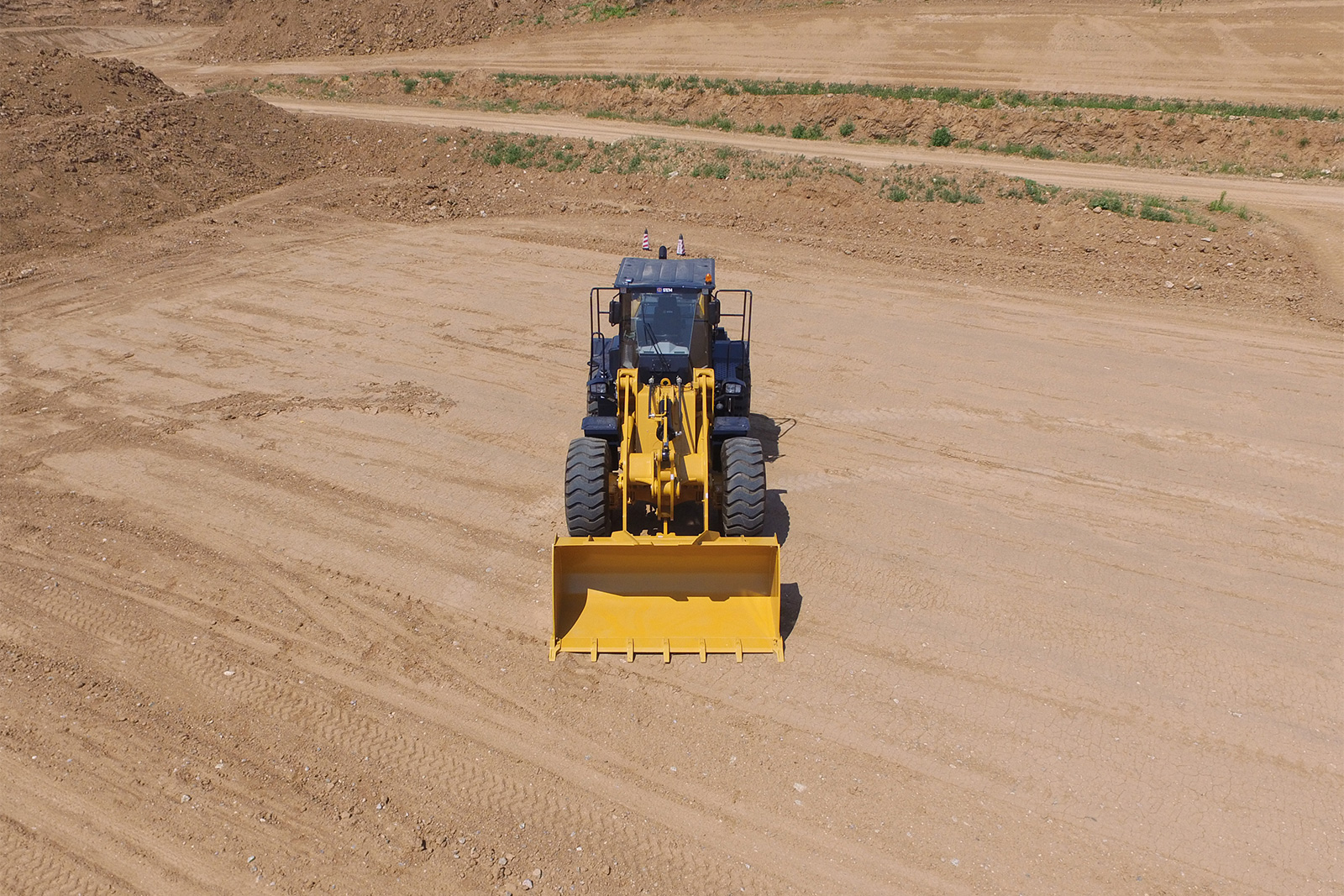

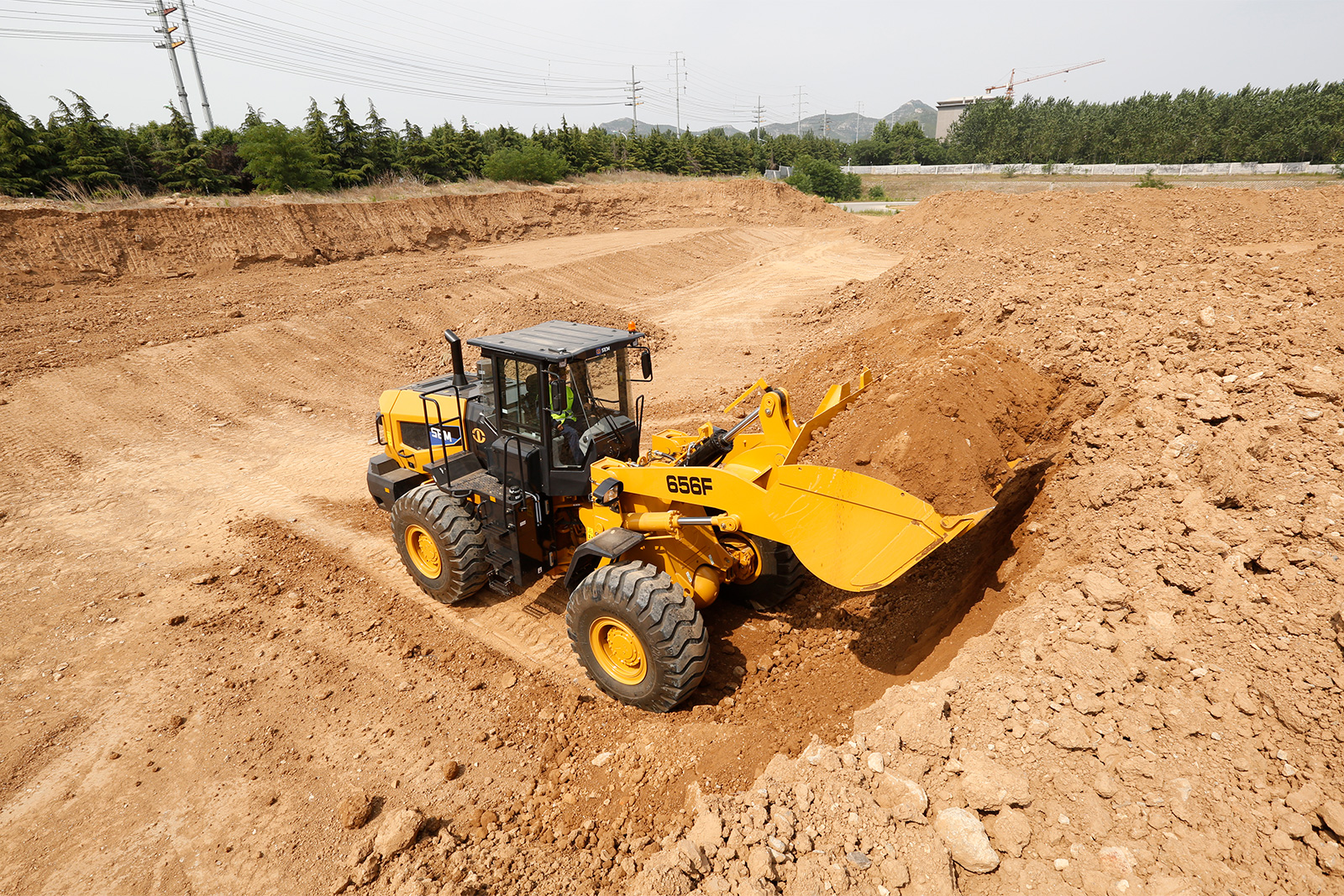

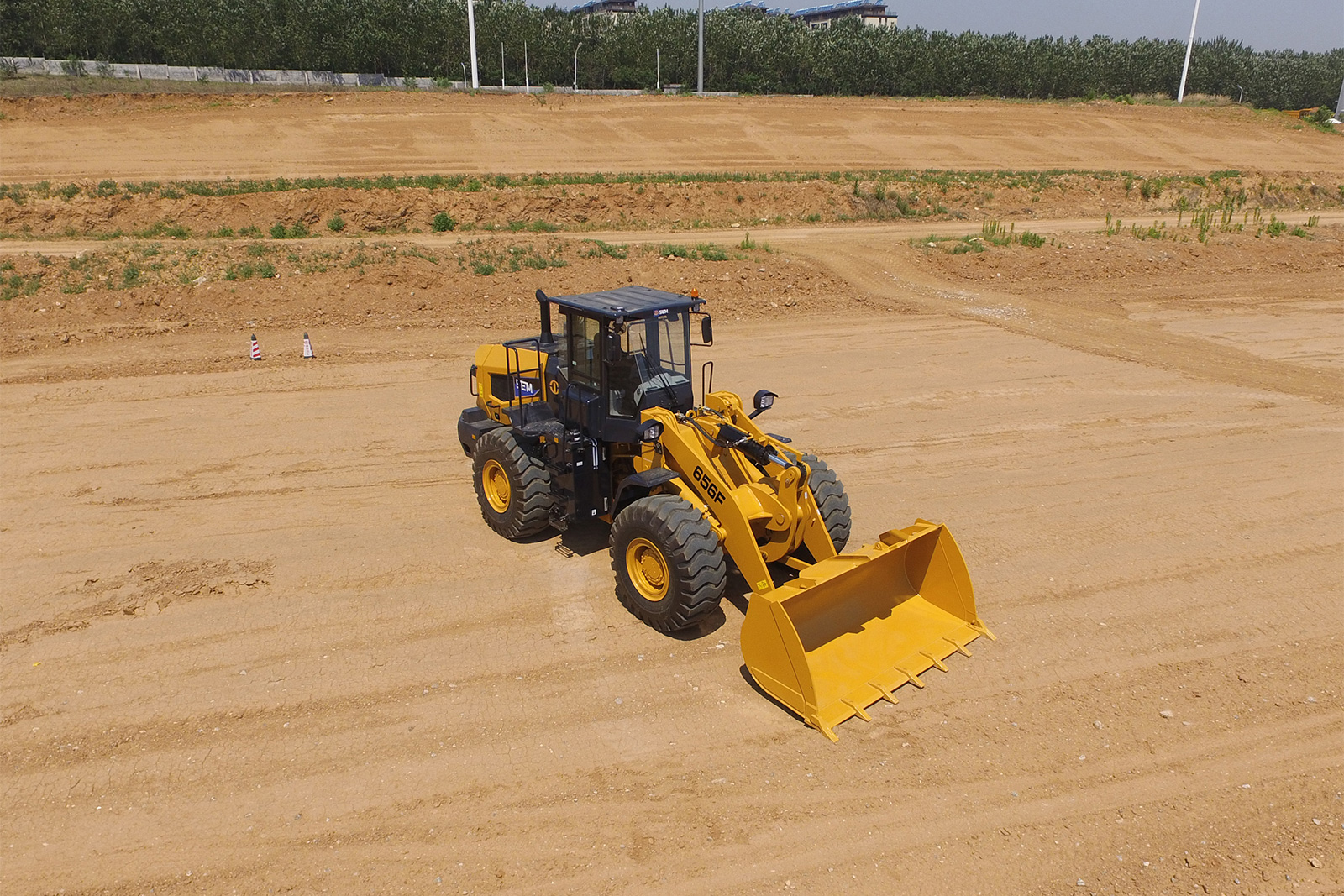

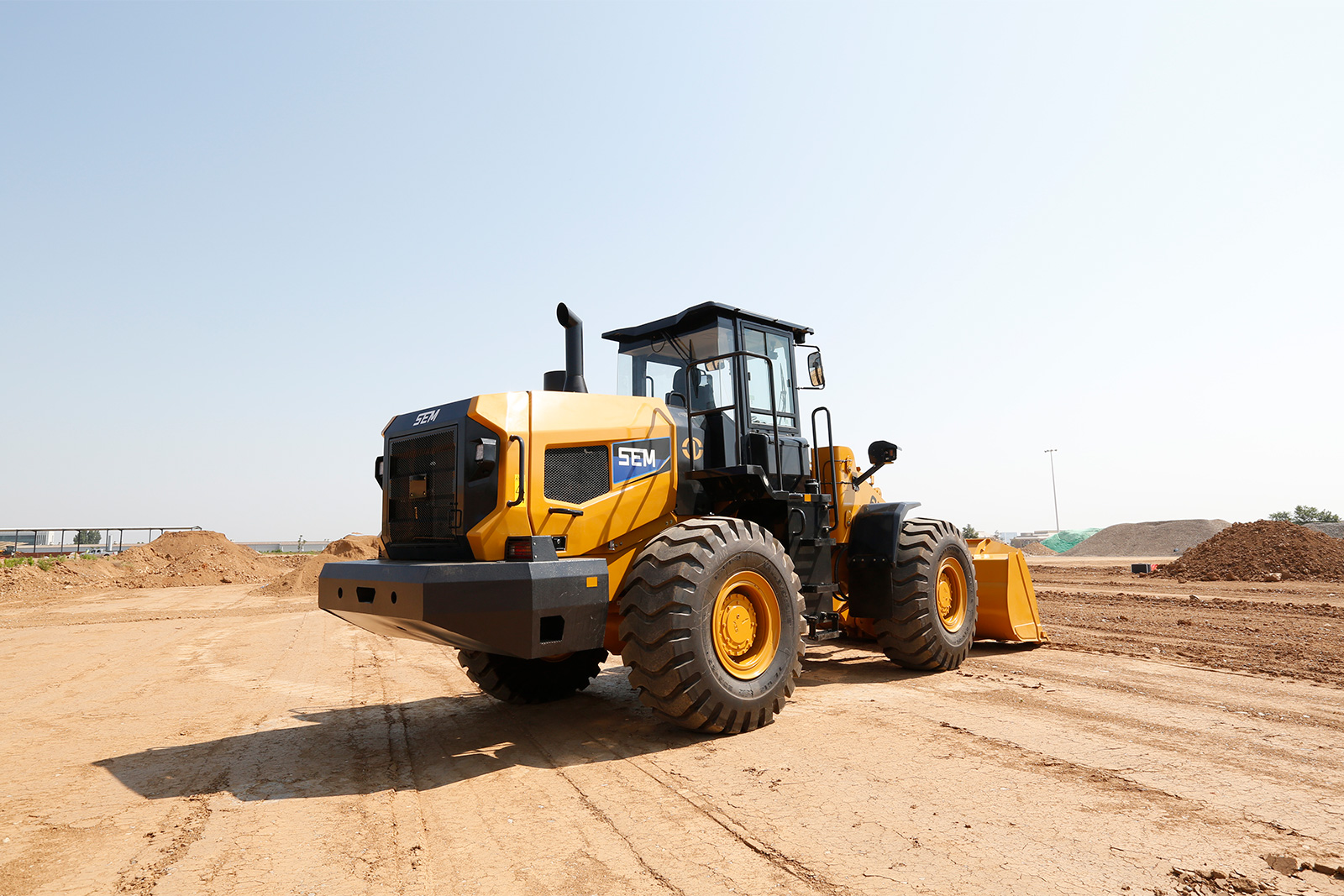

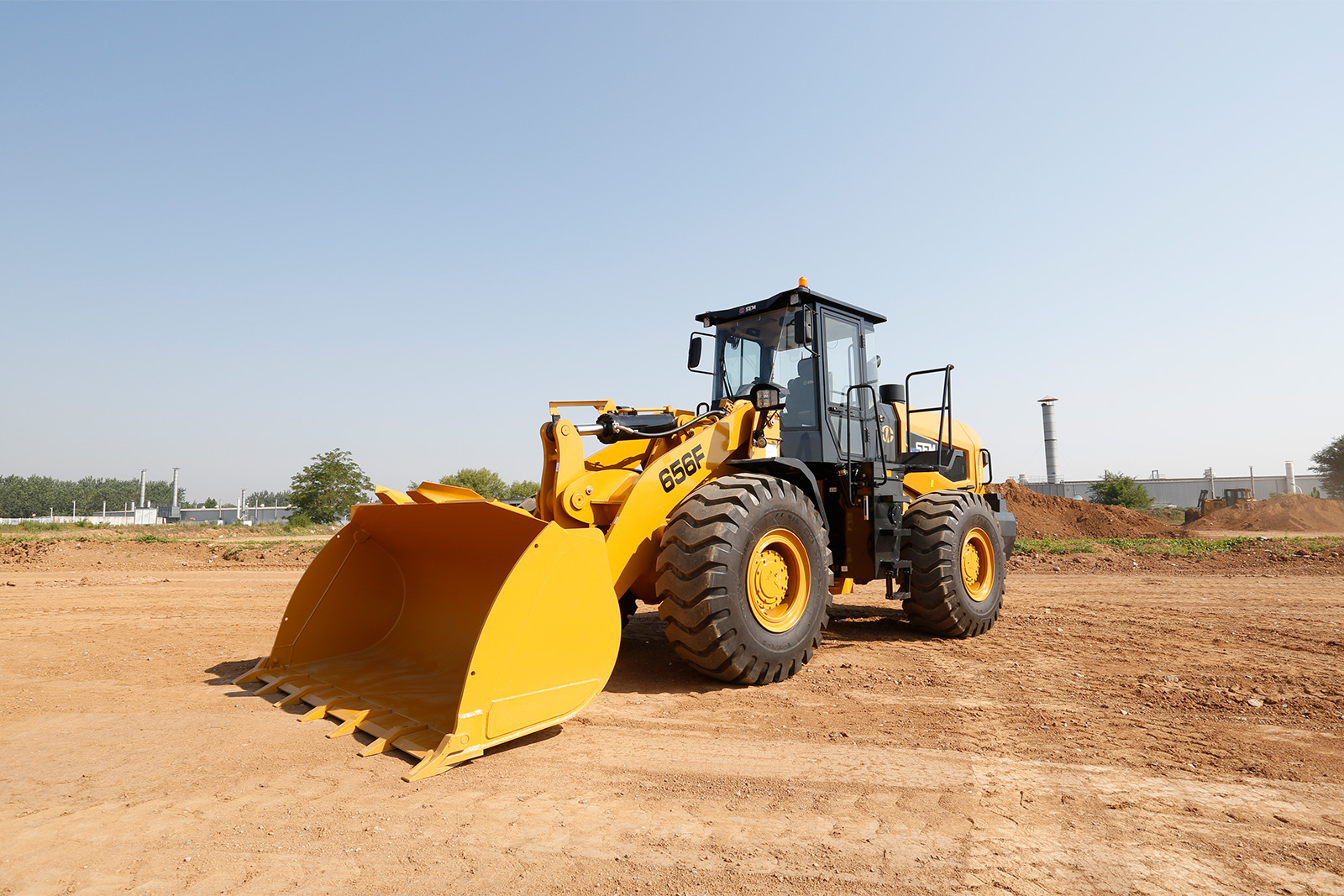

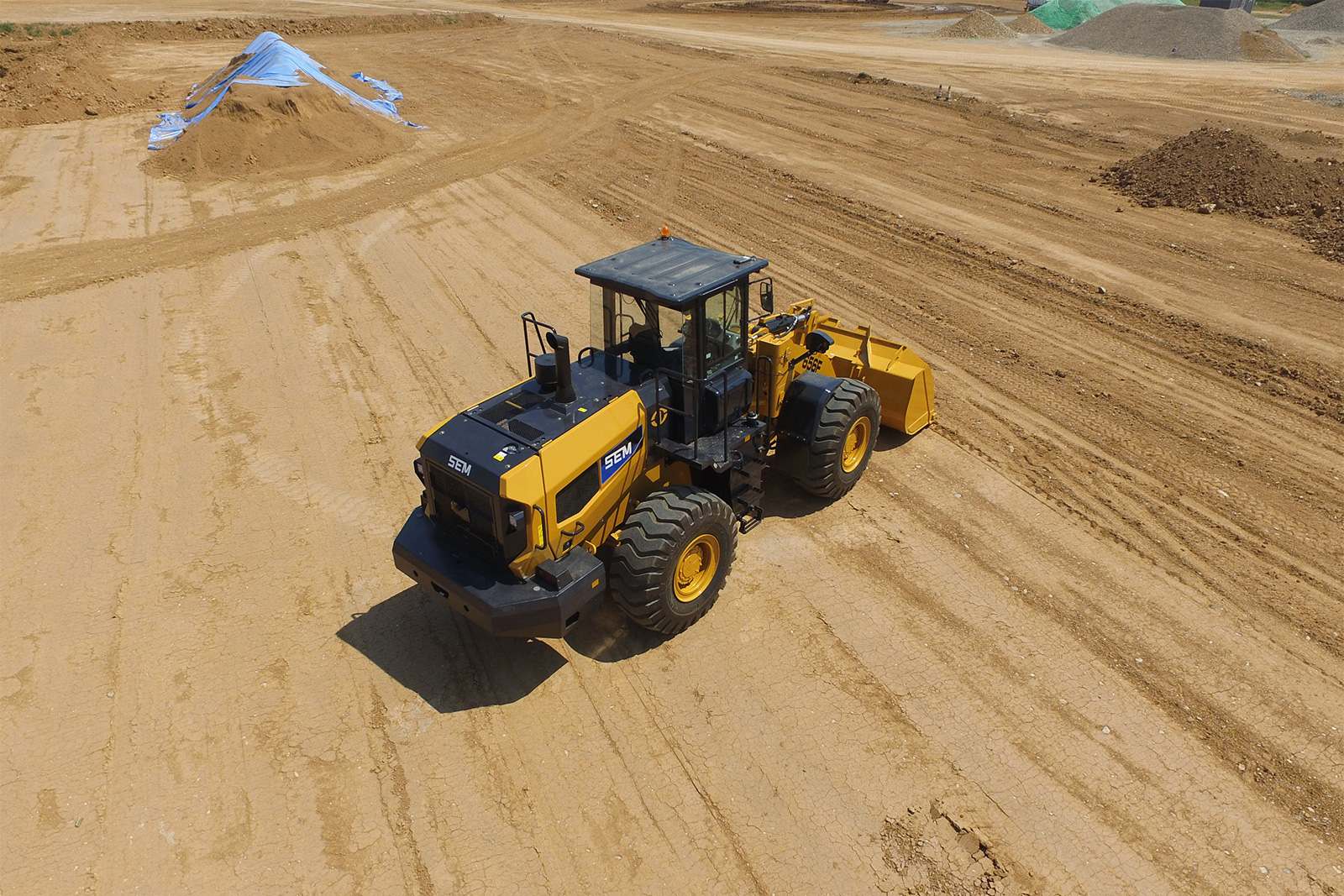

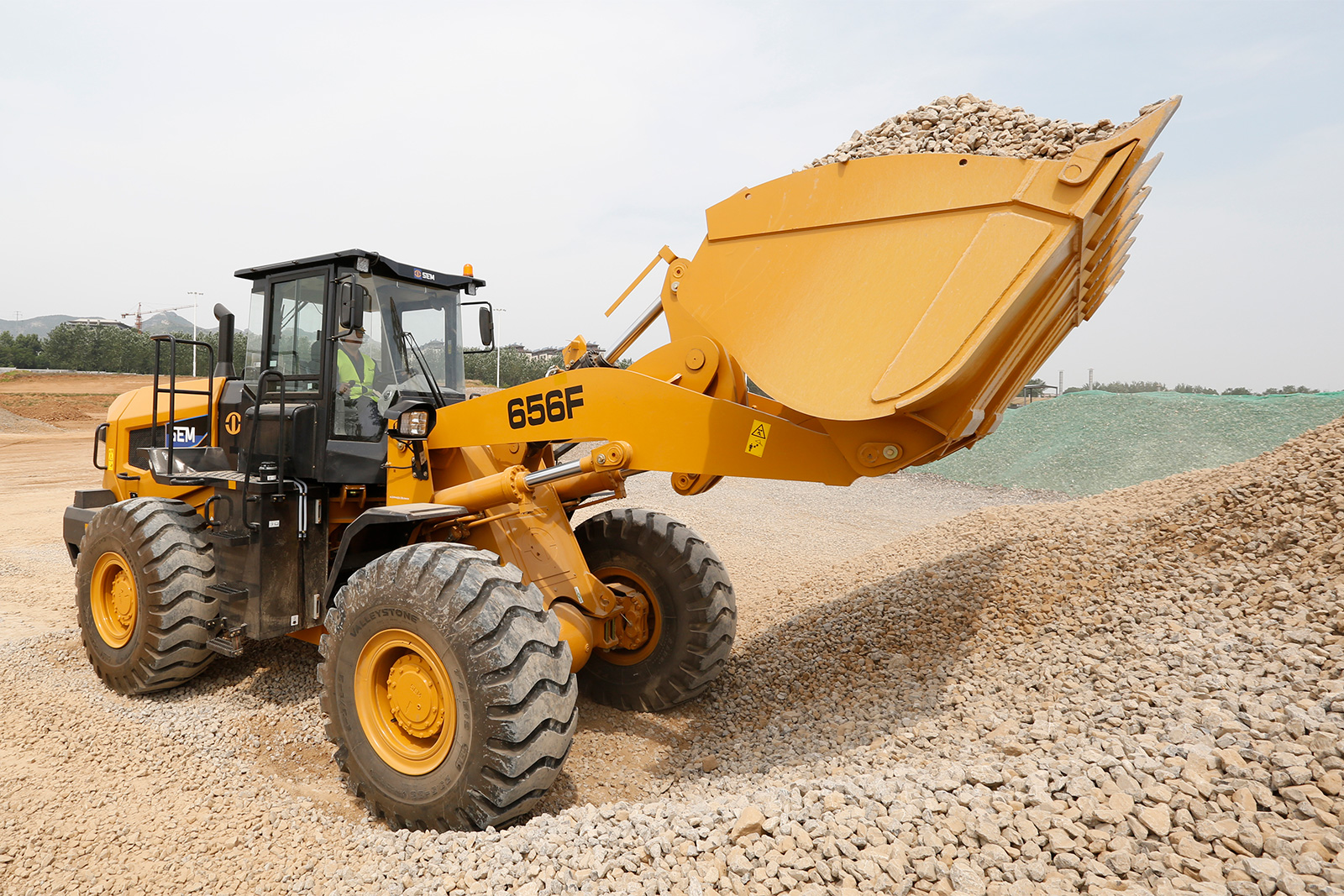

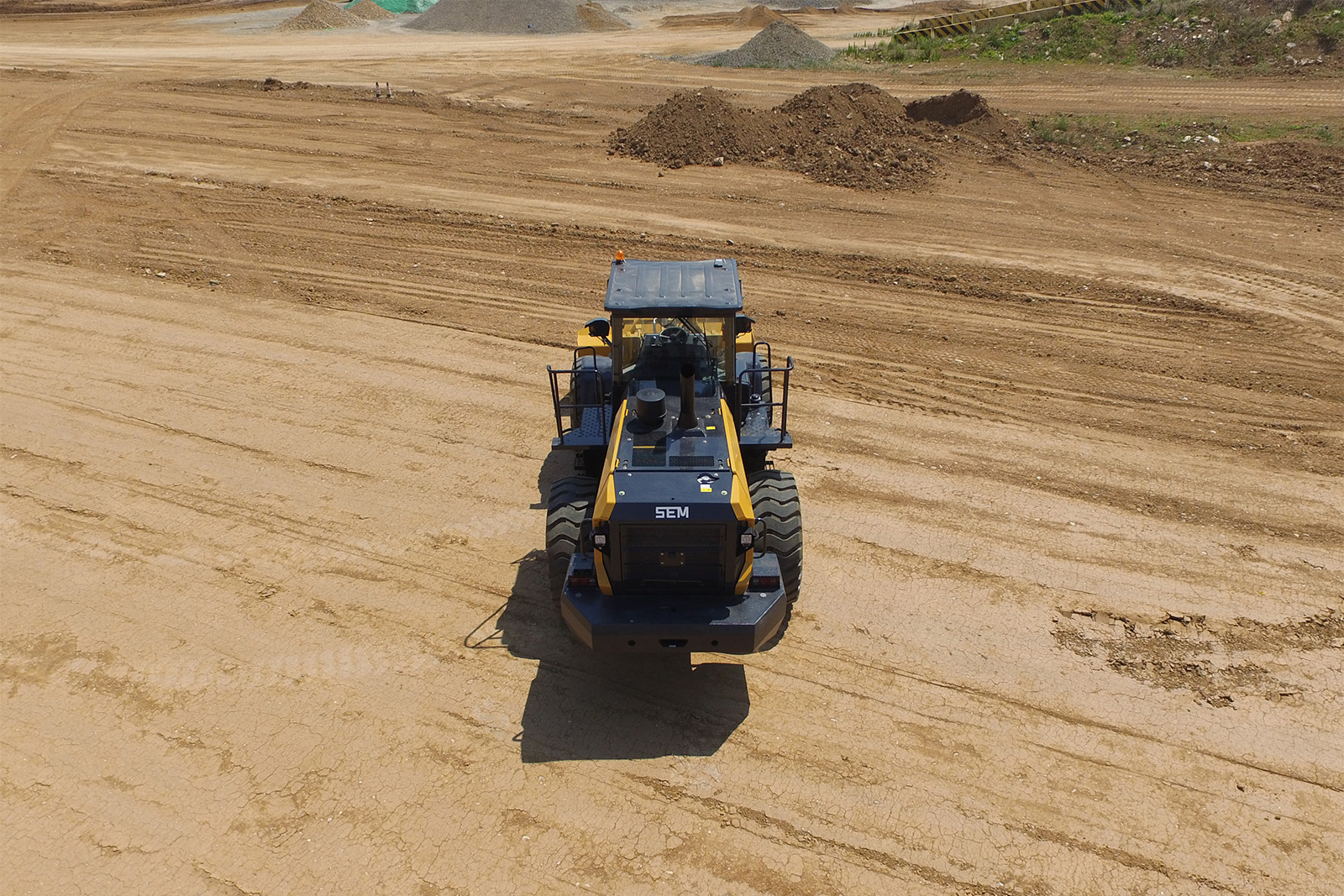

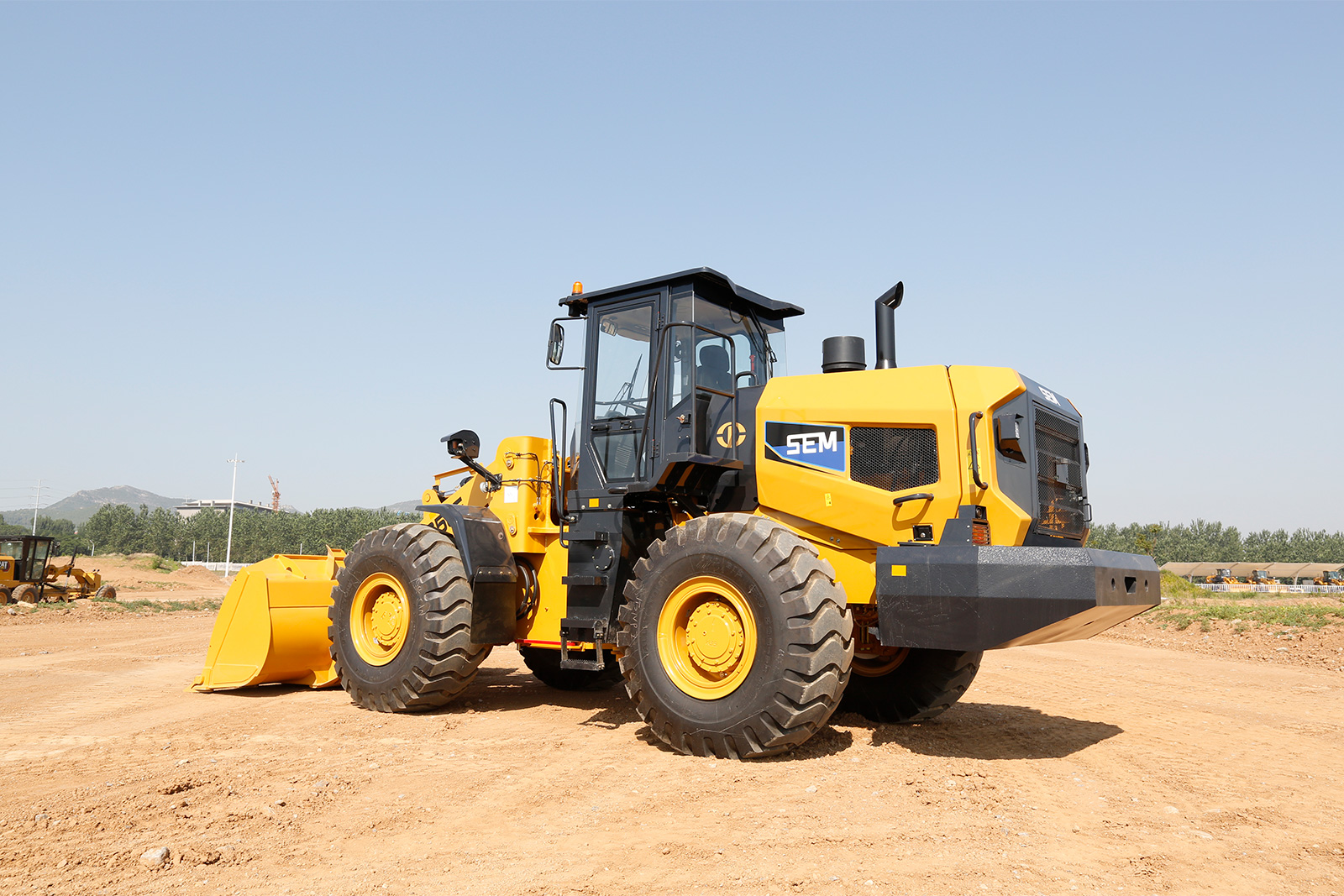

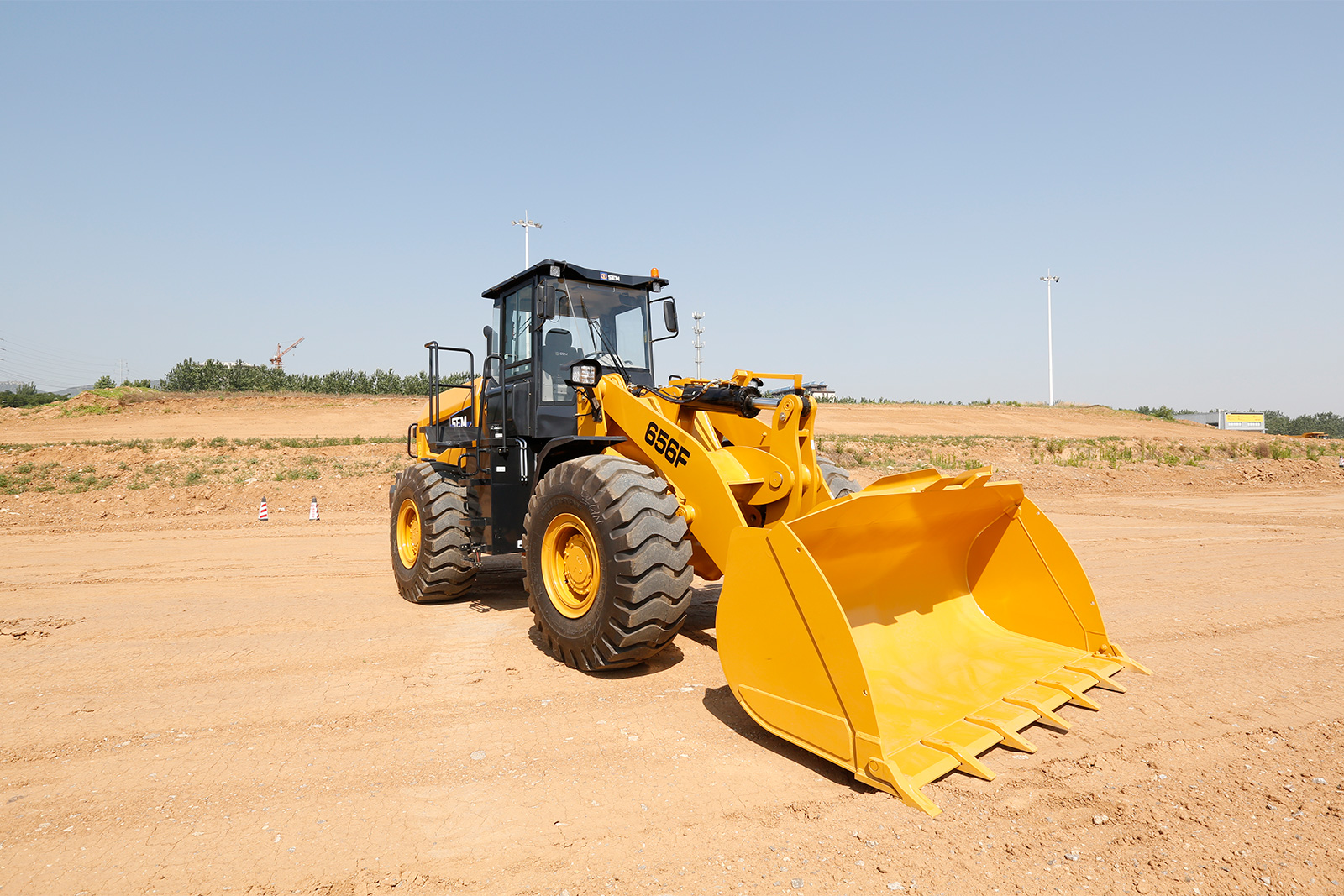

SEM 656F

Main Specifications

Nominal Lifting Capacity

5,500 kg

Operating Weight with Standard Bucket

17,678 kg (EAEU) / 17,385 kg Global

Bucket Capacity

2.6 - 5 m3

Wheelbase

3 350 mm

Dimensions

8,472 x 3,117 x 3,465 mm

Max. Traction Force

170 kN

Breakaway Force

161 kN

Unloading Height

2,991 mm

Height by Bucket Finger

4 162 mm

Transmission

Gearbox Type

Multi-shaft, power shift

Number of Gears

4 forward / 4 reverse

Torque Converter Type

Single stage, 3-element

Max. Speed in 1st Gear (Forward/Reverse)

7.6/7.6

Max. Speed in 2nd Gear (Forward/Reverse)

14/14

Max. Speed in 3rd Gear (Forward/Reverse)

22/22

Max. Speed in 4th Gear (Forward/Reverse)

39/39

Engine

Engine Model

WD10G220E23

Power

162 kW

Rotation Speed

2,000 rpm

Working Volume

9.7 l

Hydraulic System of Working Equipment

Type

Open center hydraulic valve

Full Cycle Time

9.3 sec

Pressure in the System

17 MPa

Boom Lift Time

5.13 sec

Brake System

Service Brakes

Dry type disc with pneumatic-hydraulic drive

Parking Brake

Drum

Hydraulic Steering System

Drive Type

Load sensing

Pump Type

Gear pump

Pressure in the System

16MPa

Frame Folding Angle (Left and Right)

38±1

Tires

Size

23.5-25

Type

Diagonal

Layering

Tread

L-3

Масса в базовой комплектации (с учетом отвала SU и рыхлителя): 38 710 кг
Мощность двигателя: 253 кВт / 339 л. с.
Давление на грунт (GB/T 30965): 83 кПа/ 77кПа
Дорожный просвет: 370 мм

SEM660D EAEU Region

Железные и автодороги, аэропорты
Речные и морские порты
Карьеры
Коммунальное строительство
Сельское хозяйство
Водохранилища, ГЭС
Полигоны твёрдых отходов
Добыча угля
Лесное хозяйство
Лесозаготовки
Производство бетона
Туннели
Сталелитейное производство

Повышение производительности на 10 %
Кабина серии F:
увеличенное на 20 % внутреннее пространство
Новый фирменный стиль SEM
Повышенная надежность
Отличная производительность
Снижение эксплуатационных затрат и стоимости владения
Первоклассная безопасность
Улучшенный комфорт оператора

Images
Videos

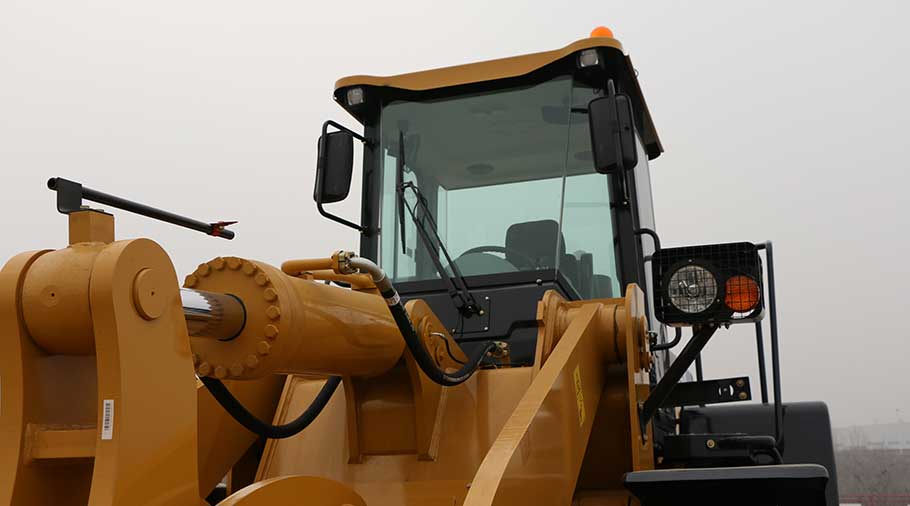

SEM660D-6
